RUICHEN Road Stud Reflectors for Dock or Deck A1

Load Bearing: 20 Tons
Warranty: 12 Months
Body material: Heavy duty casting aluminum
Power supply:  Solar panel(monocrystalline 2.5V/0.2W)
Visual distance: > 800m
Working Mode: Flashing or Constant
Waterproof: IP68

Product Introduction

Road Stud Reflectors Features:


•High shock resistance, energy-saving, environment friendly.

•Automatically starts to work when night falls or with the onset of inclement weather.

•These aluminum alloy Road Stud Reflectors are naturally charged by the sun.

•The LED lights of the Road Stud Reflectors come on automatically as soon as it starts getting dark every night.

•effective, Road Stud Reflectors are easy to install and require absolutely no wires or maintenance.

•Dramatically enhances the look of your garden/yard/driveway.

•Specifically designed with road safety in mind and can help to prevent serious accidents and emit rather than reflect light.

•Accept OEM/ODM


RUICHEN Road Stud Reflectors for Deck or Deck color
Five colors for choice: White, Amber, Red, Blue, Green


Road Stud Reflectors Parameters:


    Material:     Heavy duty casting aluminium
    Power supply:     Solar panel(monocrystalline 2.5V/0.2W)
    Battery:     NI-MH 1.2V/800MAH
    Working model:     Blinking or Constant
Charging at daytime and working automatically at night
    LED:     Diameter 5mm;2pcs or 3pcs per side
    LED colors:     Yellow, White, Red, Green, Blue
    Life span:     3 years
    Resistance:     >20T(static)
    Size:     L108mm*W97mm*H25mm  (L4.25″*W3.82″*H0.98″)
    Visual distance:     >800M
    Water poof:     IP68
    Carton Size:     2pcs/box; 60pcs/ctn; Weight: 21kgs; Carton size:58.5*24.5*18.5cm
(2pcs/box; 60pcs/ctn; Weight: 46.30bs; Carton size:23.03″*9.65*7.28″)

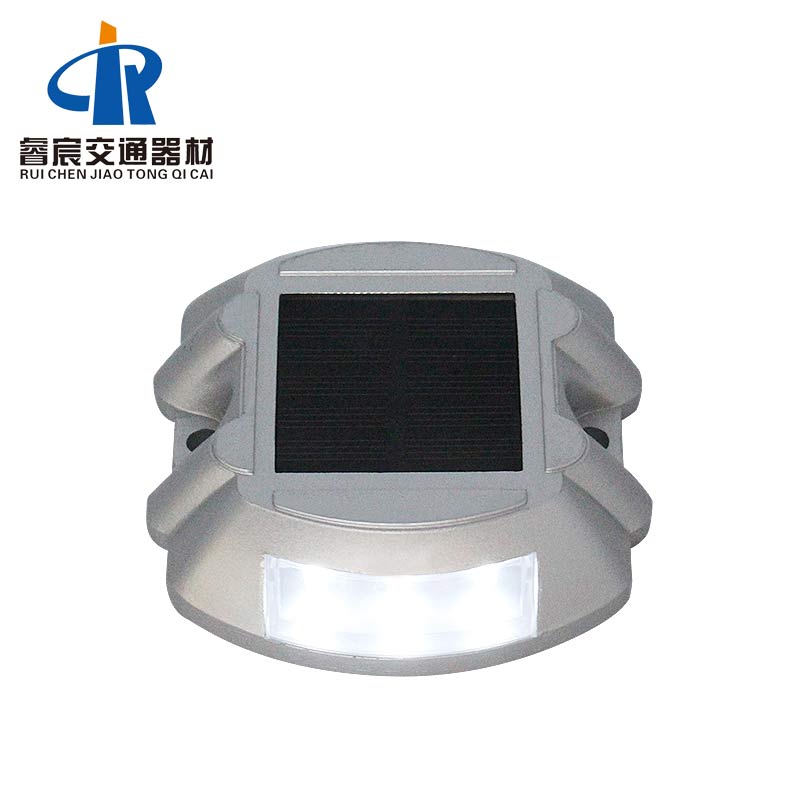

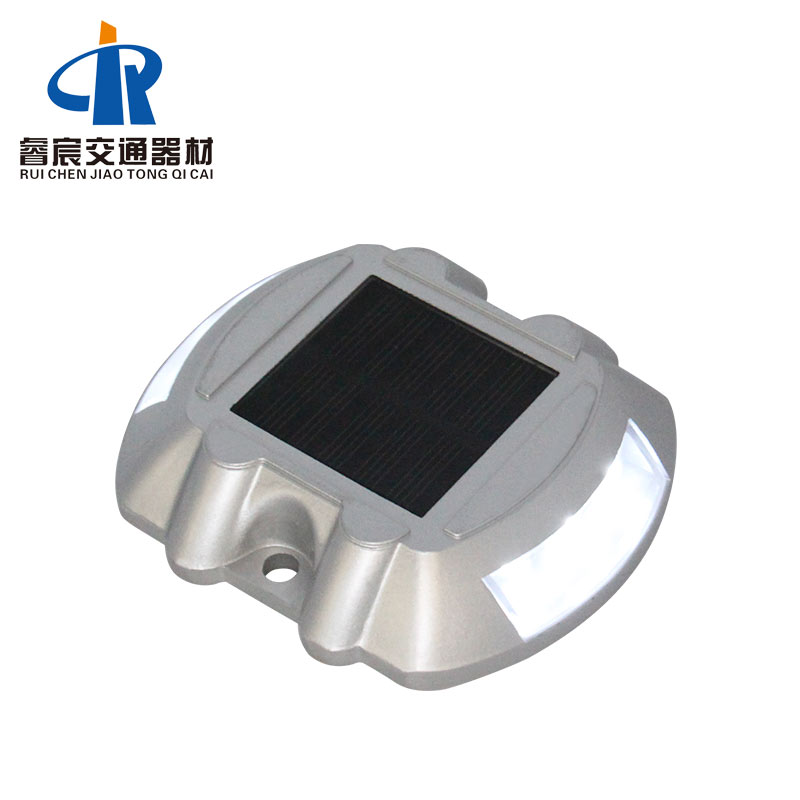

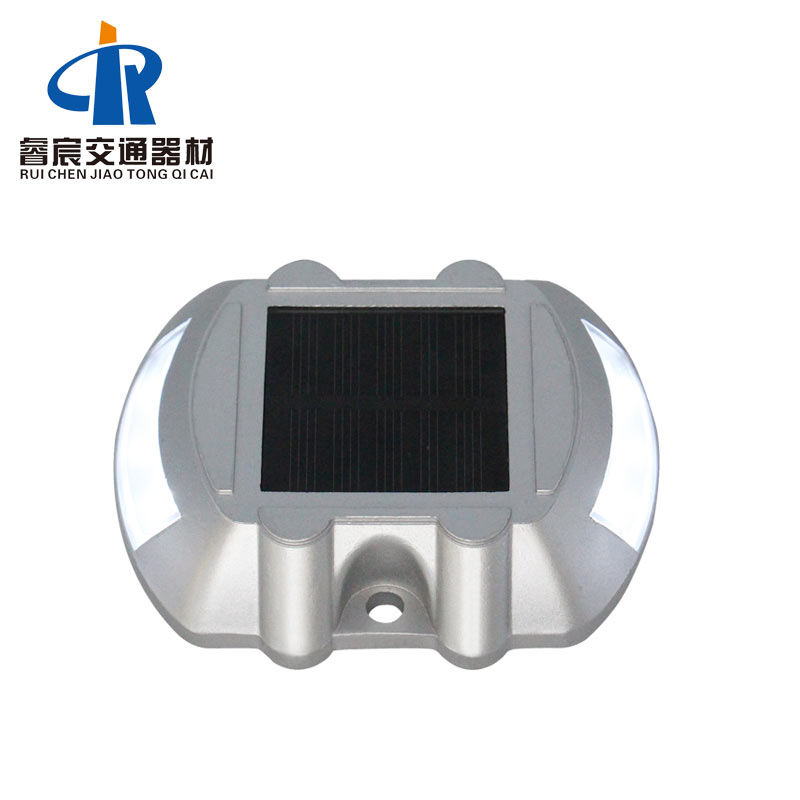

RUICHEN Road Stud Reflectors for Dock or Deck
RUICHEN Road Stud Reflectors for Dock or Deck

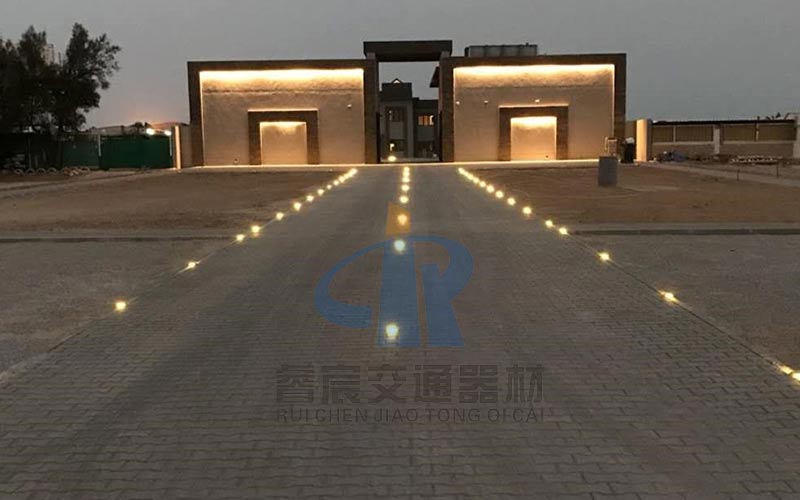

Application of Road Stud Reflectors for dock A1:

♥Schools and hospitals


♥Deck and Dock

♥Walking paths


♥Parks and campuses



Installation Method Of  Road Stud Reflectors A1:

1. Determine the installation location and distance, clean the road surface, and ensure that the Road Stud Reflectors are installed on a flat road surface.
2. Clean the bottom of the Road Stud Reflectors and apply the epoxy glue evenly to the back of the studs.
3. Press the side with the glue on the road, fix the position, wait for the glue to dry.
4. Check within 2 hours of installation to ensure that all Road Stud Reflectors are not installed incorrectly and are not bent or deformed due to compression.
5. Remove the installation isolation facility within 6-8 hours after the installation of the Road Stud Reflectors.
