Load Bearing: More Than 30 Tons
Warranty: 18 Months
Body material: GB Cast Aluminium alloy
Power supply: USA Brand Flexible High Efficient Solar Panel (2.5V/0.38W)
Visual distance: ＞ 800m
Working Mode: Flashing or Constant

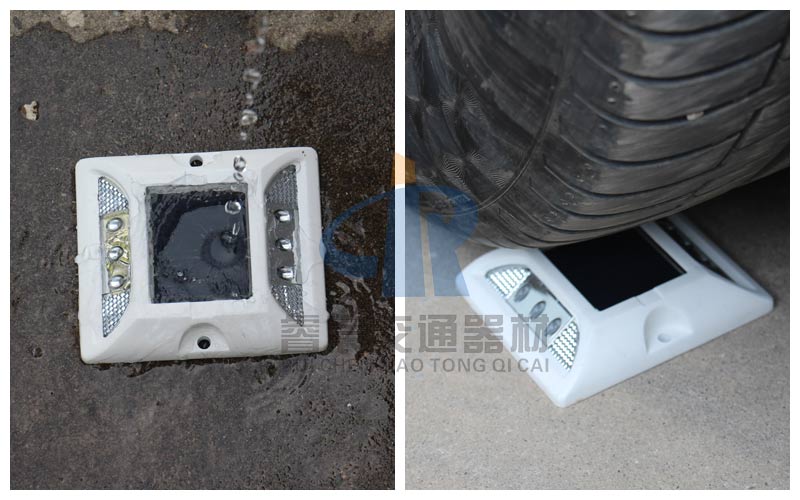

Waterproof: IP68
Shank: With shank or Without shank

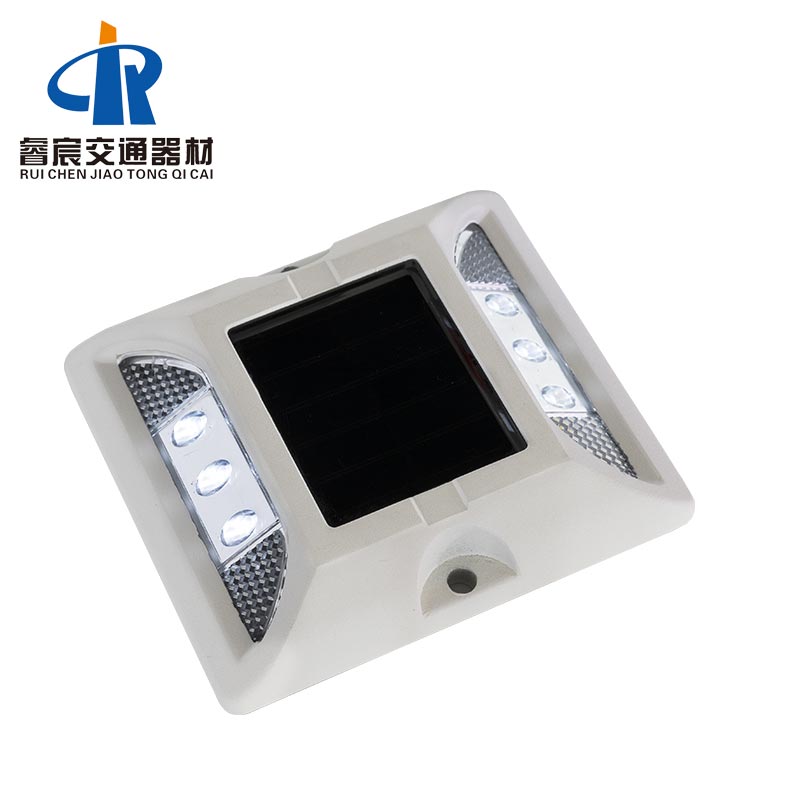

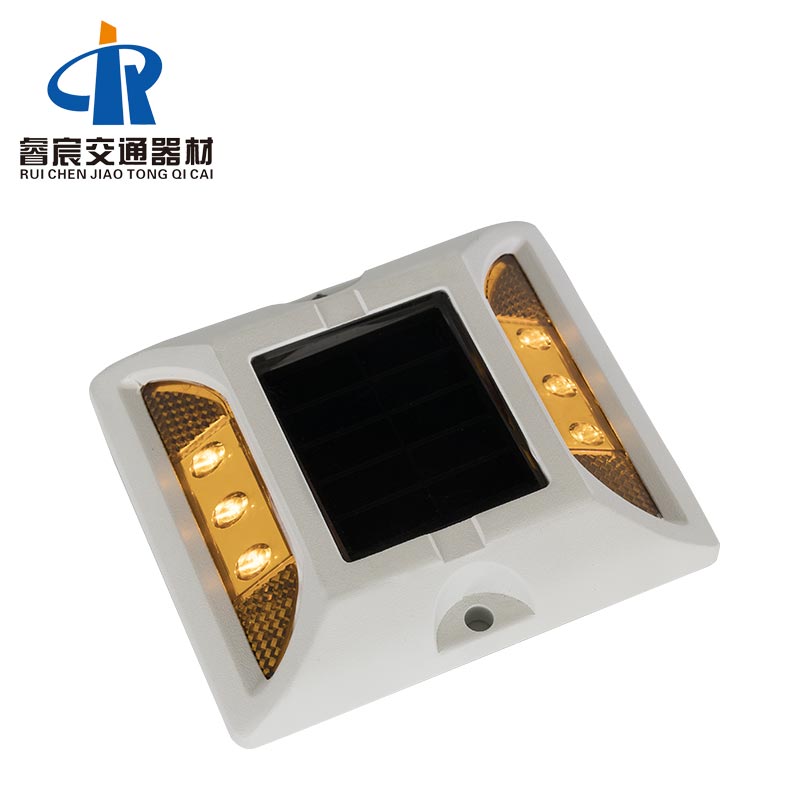

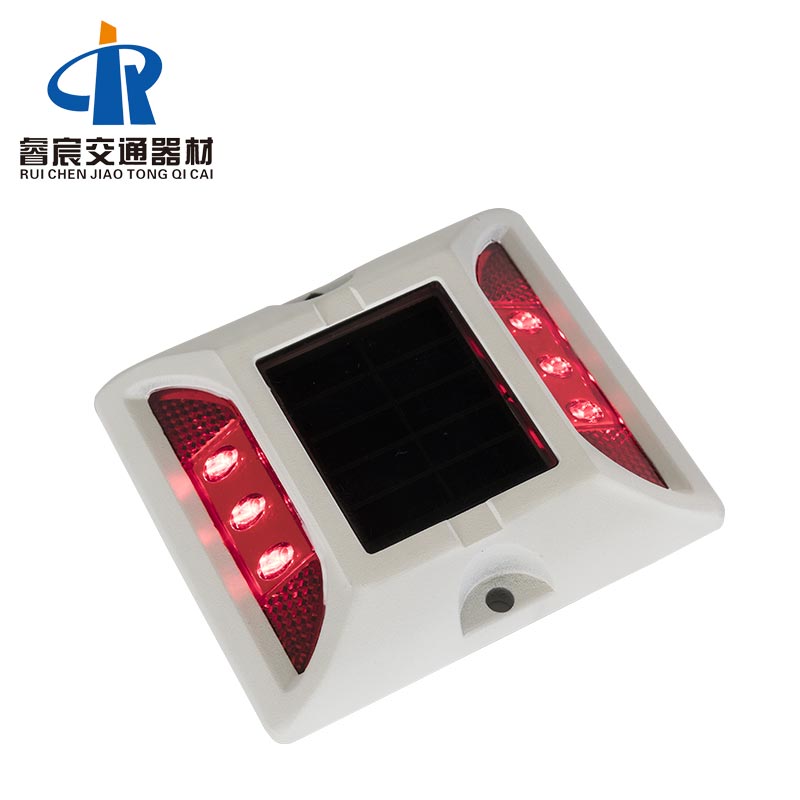

Road Stud Reflectors R1 Features:
•High brightness America brand led light with 100000 hours of working time.
•USA brand solar panel. 22% high conversion rate. Fast charge rate.
•Japan brand casting Al material. Road Stud Reflectors bears more pressure.
•Most quality Epoxy resin glue to fix the Road Stud Reflectors, making sure of solar power charge.
•Philips PC board, safe and stable. Long-time warranty for solar studs reflectors.
•The leader of Road Stud Reflectors. Load capacity:>30T(can be installed in the middle of the road)
Aluminum Road Stud Reflectors Parameters：
| Body material: | GB Cast Aluminium alloy |
| Power supply: | USA Brand Flexible High Efficient Solar Panel (2.5V/0.38W) |
| Battery: | NI-MH 1.2V/600mah(high-temperature resistance, made in China); Lithium Battery 3.2V/500MA(made in Japan); Supercapacitor 2.3V/120F(made in Korea) |
| LED: | Ultra-bright diameter 5mm(4pcs or 6pcs) |
| Shank: | With shank or Without shank |
| Working model: | Blinking or Constant(charging at daytime and working automatically at night) |
| Load Bearing: | More Than 30 Tons |
| Visual distance: | ＞ 800m |
| Size: | L125*W107*H25+55mm (L4.92″*W4.21″*H0.98″+2.17″) |
| Package: | (without spike): 2pcs/box; 60pcs/ctn; Weight: 28kgs; Carton size: 67.5*28*20cm (2pcs/box; 60pcs/ctn; Weight: 61.73bs; Carton size: 26.57″*11.02″*7.87″) (with spike):1pcs/box; 45pcs/ctn; Weight: 30kgs; Carton size: 66.5*44*28cm (1pcs/box; 45pcs/ctn; Weight: 66.13bs; Carton size: 26.18″*17.32″*11.02″) |
aluminum solar studs R1 Application of Aluminum Road Stud Reflectors:
♥Schools and hospitals
♥Highways
♥High traffic areas
♥Walking paths
♥Transit stations
♥Parks and campuses
♥Urban Road
How to install Aluminum Road Stud Reflectors with shank R1:
1. Carefully mark the distance between the placement of the Road Stud Reflectors. To prevent adverse effects on the ground, use appropriate tools, such as core drills, which have a diameter of 35mm and a depth of 55mm.
2. Remove all debris from the mounting hole.
3. Pour epoxy resin into the hole according to the manufacturer’s instructions.
Make sure that the mounting holes are straight. Make sure that the mounting hole is large enough to allow epoxy resin to surround the Road Stud Reflectors.
4. Adjust the lighting surface of the Road Stud Reflectors to the desired viewing angle.
5. Make sure that the epoxy resin adheres evenly to the mounting hole and the Road Stud Reflectors. Make sure that the bottom of the Road Stud Reflectors is securely mounted on the mounting surface to ensure that zero “surface floating” occurs. (Space between the installation sign and the bottom of the Road Stud Reflectors).
6. After curing the LED Road Stud Reflectors for 6-8 hours, remove the installation of the isolation facility.
