Round Road Stud Reflectors for Garden B1

Body material: PC(Japan Brand)
Warranty: 12 Months
Power supply:  USA Brand Flexible High Efficient Solar Panel 5V/0.4W
Visual distance: > 800m
Load Bearing: 20 Tons
Working Mode: Flashing or Constant
Waterproof: IP68
Shank: Without shank

Product Introduction

Round Road Stud Reflectors Features

  • High brightness America brand led with 100000 hours of working time.
  • USA brand solar panel. 22% high conversion rate. Fast charge rate.
  • Japan brand Anti-UV PC case.
  • The LED lights of Road Stud Reflectors come on automatically as soon as it starts getting dark every night.
  • Cost-effective, Road Stud Reflectors are easy to install and require absolutely no wires or maintenance.
  • Most quality Epoxy resin glue to fix theRoad Stud Reflectors, making sure of solar power charge.
  • Accept OEM/ODM

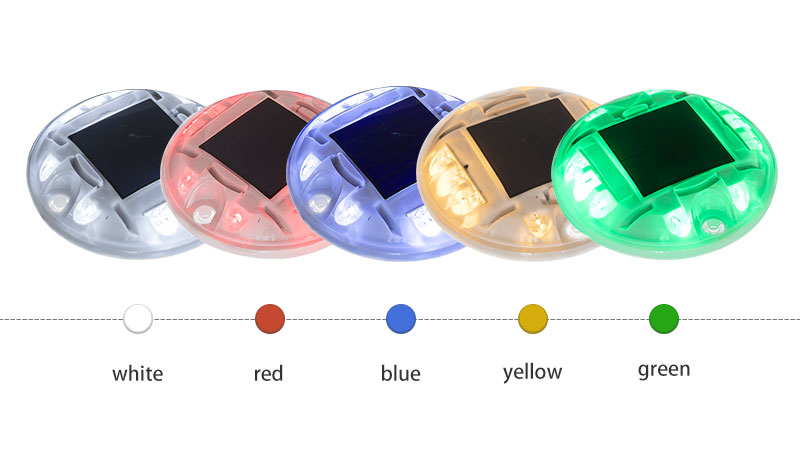

Road Stud Reflectors Light for Garden color
Road Stud Reflectors Light for Garden color

Five colors for choice: White, Amber, Red, Blue, Green


Road Stud Reflectors Light Parameters


    Material:     PC(Japan Brand)
    Power supply:     USA Brand Flexible High Efficient Solar Panel 5V/0.4W
    Battery:     NI-MH 1.2V/600MAH or Lithium battery 3.2V/500MA
    Working model:     Blinking or Constant
Charging in daytime and working automatically at night
    LED colors:     Yellow, White, Red, Green, Blue
    Life span:    >3 Years
    Load Bearing:     20T
    Size:     φ117*23mm (φ4.61″*0.91″)
    Visual distance:     >800M
    Water poof:     IP68
    Carton Size:     2pcs/box; 60pcs/ctn; weight: 19kgs; carton size: 67.5*28*20cm
2pcs/box; 60pcs/ctn; weight: 41.49bs; carton size: 26.57″*11.02″*7.87″

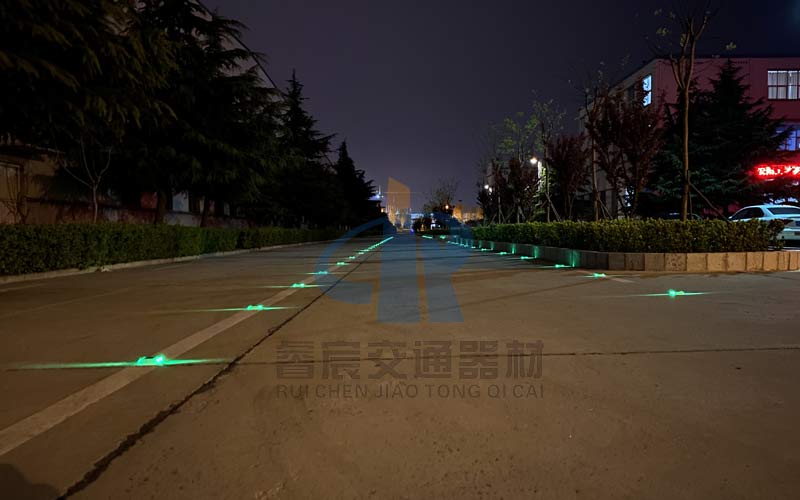

Road Stud Reflectors Light
Road Stud Reflectors Light


Application of Road Stud Reflectors Light Light B1:

♥Schools and hospitals


♥Deck and Dock

♥Walking paths


♥Parks and campuses



How to install Road Stud Reflectors Light Light for Garden B1:

  1. Determine the installation location and distance, clean the surface of the Road Stud Reflectors Light, and ensure that theRoad Stud Reflectors Light are installed on a flat road surface.
  2. Clean the bottom of theRoad Stud Reflectors Light and apply the epoxy glue evenly to the back of the stud.
  3. Press the side with glue on the road, secure the position, wait for the glue to dry out.
  4. Check within 2 hours of installation to ensure that all Road Stud Reflectors Light are properly installed and do not bend or deform due to compression.
  5. Please evacuate the installation isolation facility 6-8 hours after installing the Road Stud Reflectors Light.
