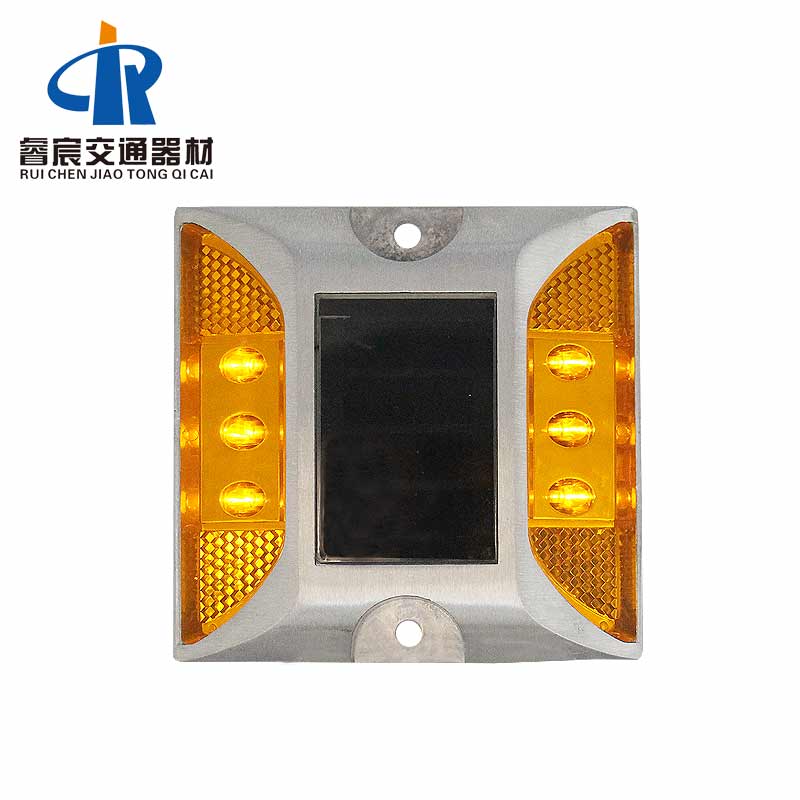

Raised Aluminum Road Stud Reflectors For Sale D1

Load Bearing: 20 Tons
Warranty: 12 Months
Body material: Heavy duty casting aluminum
Power supply:  Solar panel(monocrystalline 2.5V/0.2W)
Visual distance: > 800m
Working Mode: Flashing or Constant
Waterproof: IP68

Product Introduction

Aluminum Road Stud Reflectors Features:

•Up to 800 meters of visibility.

•Reliable all night, all-year-round performance.

•Totally sustainable harnessing free solar energy.

•Used where street lighting is either unavailable, Road Stud Reflectors not cost-effective, or environmentally impossible.

•Cost-effective, Road Stud Reflectors are easy to install and require absolutely no wires or maintenance.

•Road Stud Reflectors self-contained surface mounted.

•Road Stud Reflectors for road accept OEM/ODM

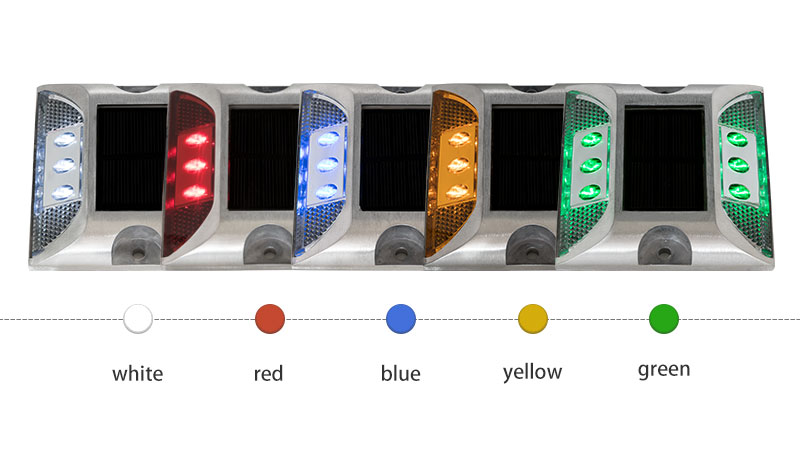

Raised Aluminum Road Stud Reflectors color
Raised Aluminum Road Stud Reflectors color

Road Stud Reflectors Parameters:

    Material:     Heavy duty casting aluminium
    Power supply:     Solar panel(monocrystalline 2.5V/0.2W)
    Battery:     NI-MH 1.2V/800MAH or lithium battery
    Working model:     Blinking or Constant
Charging at daytime and working automatically at night
    LED:    Diameter 5mm;2pcs or 3pcs per side
    LED colors:     Yellow, White, Red, Green, Blue
    Life span:    3 years
    Resistance:     >20T(static)
    Size:     L104*W104*H20mm  (L4.09″*W4.09″*H0.78″)
    Visual distance:     >800M
    Water poof:     IP68
    Carton Size:     60pcs/ctn(2pcs/box);21kgs; Carton size:58.5*24.5*18.5cm
[60pcs/ctn(2pcs/box);46.30bs; Carton size:23.03″*9.65″*7.28″]

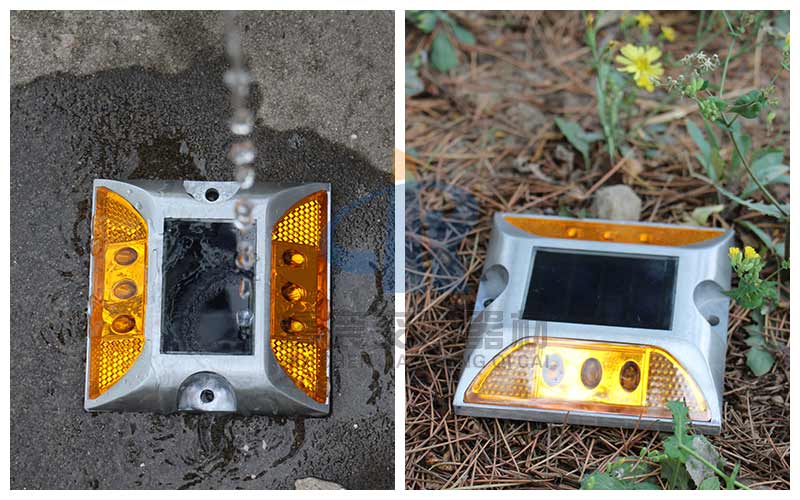

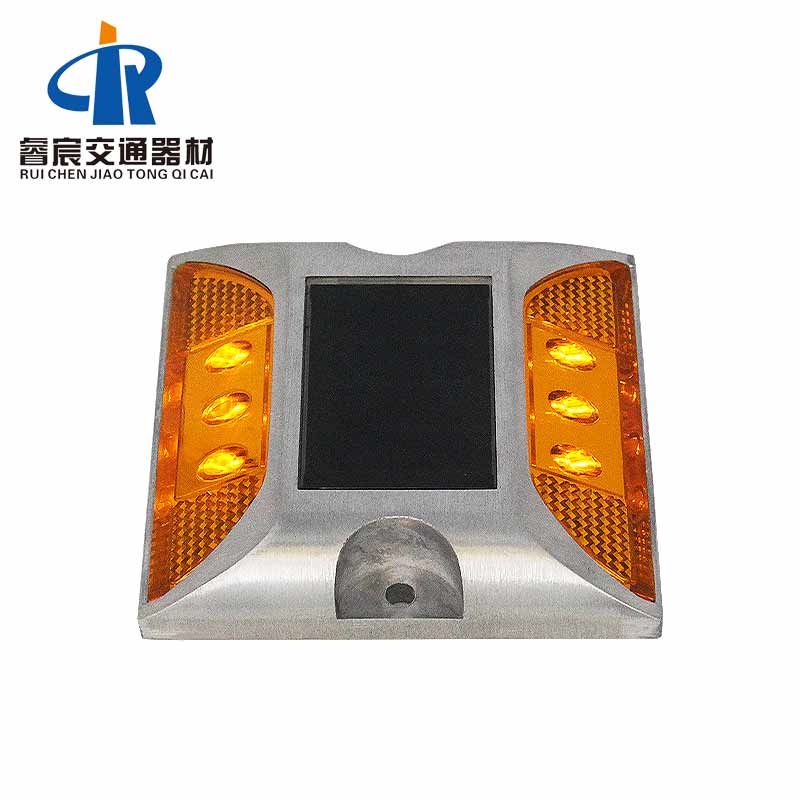

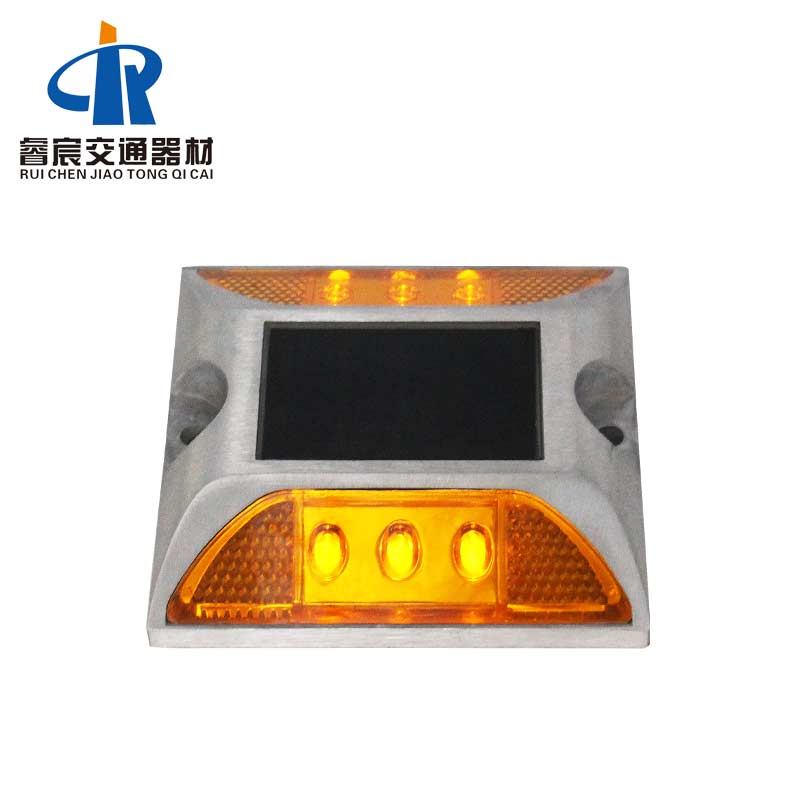

Raised Aluminum Road Stud Reflectors For Sale
Raised Aluminum Road Stud Reflectors For Sale


Application of Road Stud Reflectors D1:

♥Schools and hospitals


♥Deck and Dock

♥Walking paths


♥Parks and campuses



Installation Method Of  Road Stud Reflectors D1:

  1. Determine the installation location and distance, clean the road surface, and ensure that theRoad Stud Reflectors are installed on a flat road surface.
    Clean the bottom of the Road Stud Reflectors and apply the epoxy glue evenly to the back of the studs.
    3. Press the side with the glue on the road, fix the position, wait for the glue to dry.
    4. Check within 2 hours of installation to ensure that all Road Stud Reflectors are not installed incorrectly and are not bent or deformed due to compression.
    5. Remove the installation isolation facility within 6-8 hours after the installation of the Road Stud Reflectors.
