Thickness: Only 11mm
Warranty: 18 Months
Body material: PC(Japan Brand)
Visual distance: ＞ 800m
Load Bearing: 20 Tons
Working Mode: Flashing or Constant
Waterproof: IP68
Shank: Without shank
Plastic Road Stud Reflectors Features:
•High brightness America brand led light with 100000 hours of working time.
•USA brand solar panel. 22% high conversion rate. Fast charge rate.
•Thickness only 11mm, Road Stud Reflectors friendly to bicycle and motorcycle wheels.
•Anchor holes or the adhesive bond for dual fixation.
•Long life span 5-8 years.
•Road Stud Reflectors accept OEM/ODM
Plastic Road Stud Reflectors Parameters:
| Material: | PC(Japan Brand) |
| Power supply: | USA Brand Flexible High Efficient Solar Panel 5.5V/80MA |
| Battery: | Lithium battery 3.2V/500MA |
| Working model: | Blinking or Constant Charging at daytime and working automatically at night |
| Life span: | 5 years for lithium battery; |
| LED colors: | Yellow, White, Red, Green, Blue |
| Resistance: | 20T(static) |
| Size: | 114*90*11mm (4.49″*3.54″*0.43″) |
| Visual distance: | >800M |
| Water poof: | IP68 |
| Carton Size: | 2pcs/box;100pcs/ctn;weight:14.5kg;carton size:48*27*21.5cm 2pcs/box;100pcs/ctn;weight:31.97bs;carton size:18.90″*10.63″*8.46″ |

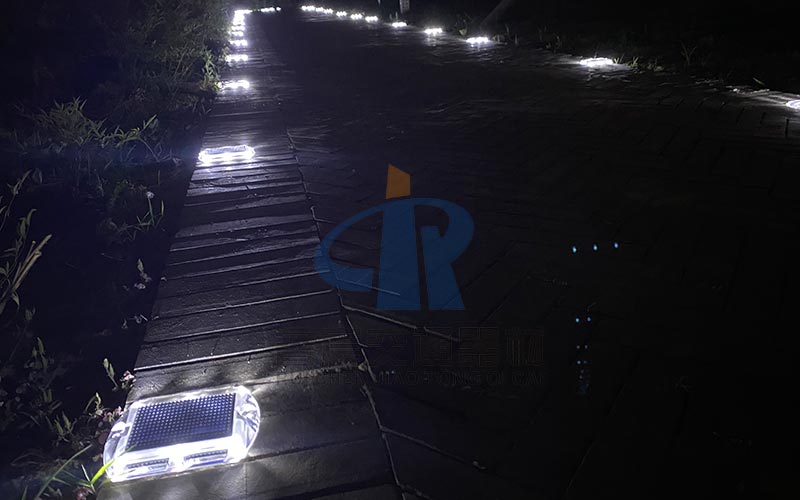

Application of Road Stud Reflectors For Bike Path F1:
♥Schools and hospitals
♥Gardens
♥Deck and Dock
♥Walking paths
♥Bridge
♥Parks and campuses
♥For Decoration
How to install Aluminum Road Stud Reflectors with shank F1:
1. Determine the installation location and distance, clean the surface of the Road Stud Reflectors, and ensure that the Road Stud Reflectors are installed on a flat road surface.
2. Clean the bottom of the Road Stud Reflectors and apply the epoxy glue evenly to the back of the stud.
3. Press the side with glue on the road, secure the position, wait for the glue to dry out.
4. Check within 2 hours of installation to ensure that all Road Stud Reflectors are properly installed and do not bend or deform due to compression.
5. Please evacuate the installation isolation facility 6-8 hours after installing the Plastic Road Stud Reflectors.
Load Bearing: More Than 30 Tons
Warranty: 18 Months
Body material: GB Cast Aluminium alloy
Power supply: USA Brand Flexible High Efficient Solar Panel (2.5V/0.38W)
Visual distance: ＞ 800m
Working Mode: Flashing or Constant
Waterproof: IP68
Shank: With shank or Without shank
Load Bearing: >20T(static)
Warranty: 12 Months
Body material: GB Cast Aluminium alloy
Power supply: Solar panel(monocrystalline 2.5V/0.2W)
Visual distance: ＞ 800m
Working Mode: Flashing or Constant
Waterproof: IP68
Shank: With shank or Without shank
Load Bearing: 20 Tons
Warranty: 12 Months
Body material: Heavy duty casting aluminum
Power supply: Solar panel(monocrystalline 2.5V/0.2W)
Visual distance: ＞ 800m
Working Mode: Flashing or Constant
Waterproof: IP68
Body material: PC(Japan Brand)
Warranty: 12 Months
Power supply: USA Brand Flexible High Efficient Solar Panel 5V/0.4W
Visual distance: ＞ 800m
Load Bearing: 20 Tons
Working Mode: Flashing or Constant
Waterproof: IP68
Shank: Without shank
