Load Bearing: >20T(static)
Warranty: 18 Months
Body material: Heavy-duty casting aluminum
Power supply: The solar panel(monocrystalline 2.5V/0.2W)
Visual distance: ＞ 800m
Working Mode: Flashing or Constant
Waterproof: IP68
Aluminum Road Stud Reflectors Features:
•Up to 800 meters of visibility.
•Reliable all night, all-year-round performance.
•Totally sustainable harnessing free solar energy.
•Used where street lighting is either unavailable, Road Stud Reflectors not cost-effective or environmentally impossible.
•Cost-effective, Road Stud Reflectors are easy to install and require absolutely no wires or maintenance.
•Solar-powered Road Stud Reflectors self-contained surface mounted.
•Road Stud Reflectors for road accept OEM/ODM
LED Road Stud Reflectors for road Parameters:
| Material: | Heavy-duty casting aluminum |
| Power supply: | The solar panel(monocrystalline 2.5V/0.2W) |
| Battery: | NI-MH 1.2V/800MAH or lithium battery |
| Working model: | Blinking or Constant Charging at daytime and working automatically at night |
| LED: | 3pcs per side, total 6 pcs |

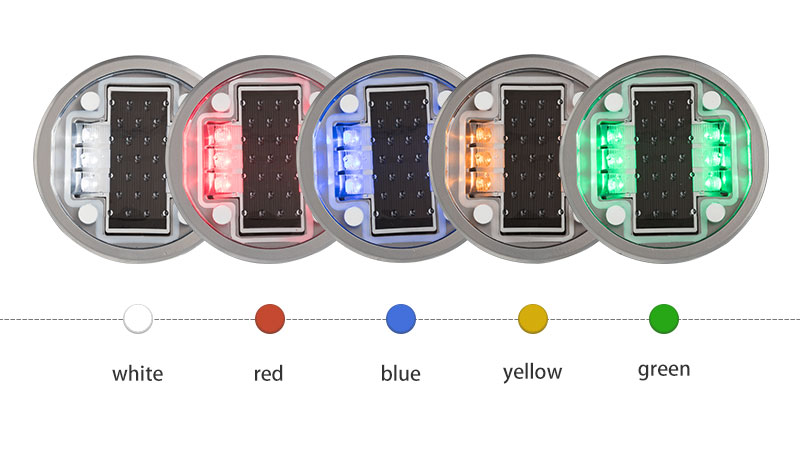

| LED colors: | Yellow, White, Red, Green, Blue |
| Life span: | 3 years |
| Resistance: | >20T(static) |
| Size: | 120*50mm(bottom) 4.72″*1.97″(bottom) 135*50mm(upper) 5.31″*1.97″(upper) |
| Visual distance: | >800M |
| Water poof: | IP68 |
| Carton Size: | 24pcs/ctn; weight: 17kgs; Carton size: 43*25*28CM/57*41*23.5CM 24pcs/ctn; weight: 37.48bs; Carton size: 16.92″*9.84″*11.02″/22.44*16.14″*9.25″ |
Application of Aluminum LED Road Stud Reflectors C1:
♥Schools and hospitals
♥Highways
♥High traffic areas
♥Walking paths
♥Transit stations
♥Parks and campuses
♥Urban Road
Installation Method Of Embedded Aluminum Road Stud Reflectors C1:
1. Carefully mark the distance between the placement of Road Stud Reflectors. To prevent an adverse effect on the ground, use a proper tool such as Core Drill. Drill Φ120mm and depth will be 50mm.
2. Remove all debris from the installation hole.
3. Pour epoxy into the holes per the manufacturer’s instruction.
4. Verity that the installation hole is straight. Verify that the installation hole is large enough to allow the epoxy to surround the led Road Stud Reflectors shaft.
5. Set the lighting surface of the Road Stud Reflectors to the desired viewing angle. Verify the epoxy is evenly adhering to the installation hole and Road Stud Reflectors shaft.
6. After curing the LED Road Stud Reflectors for 6-8 hours, remove the installation of the isolation facility.
Load Bearing: More Than 30 Tons
Warranty: 18 Months
Body material: GB Cast Aluminium alloy
Power supply: USA Brand Flexible High Efficient Solar Panel (2.5V/0.38W)
Visual distance: ＞ 800m
Working Mode: Flashing or Constant
Waterproof: IP68
Shank: With shank or Without shank
Load Bearing: >20T(static)
Warranty: 12 Months
Body material: GB Cast Aluminium alloy
Power supply: Solar panel(monocrystalline 2.5V/0.2W)
Visual distance: ＞ 800m
Working Mode: Flashing or Constant
Waterproof: IP68
Shank: With shank or Without shank
Load Bearing: 20 Tons
Warranty: 12 Months
Body material: Heavy duty casting aluminum
Power supply: Solar panel(monocrystalline 2.5V/0.2W)
Visual distance: ＞ 800m
Working Mode: Flashing or Constant
Waterproof: IP68
Body material: PC(Japan Brand)
Warranty: 12 Months
Power supply: USA Brand Flexible High Efficient Solar Panel 5V/0.4W
Visual distance: ＞ 800m
Load Bearing: 20 Tons
Working Mode: Flashing or Constant
Waterproof: IP68
Shank: Without shank
