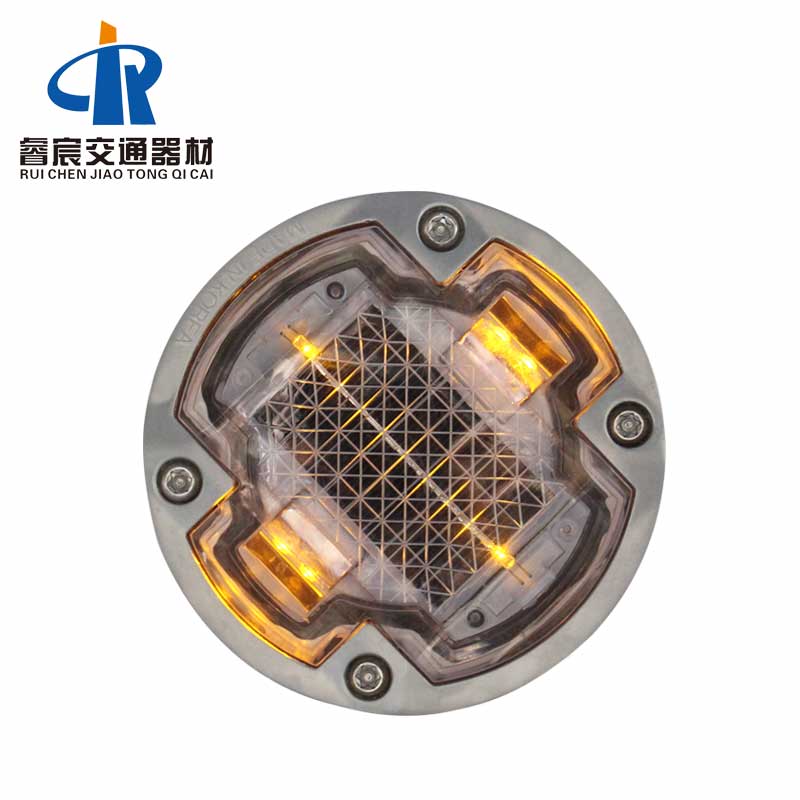

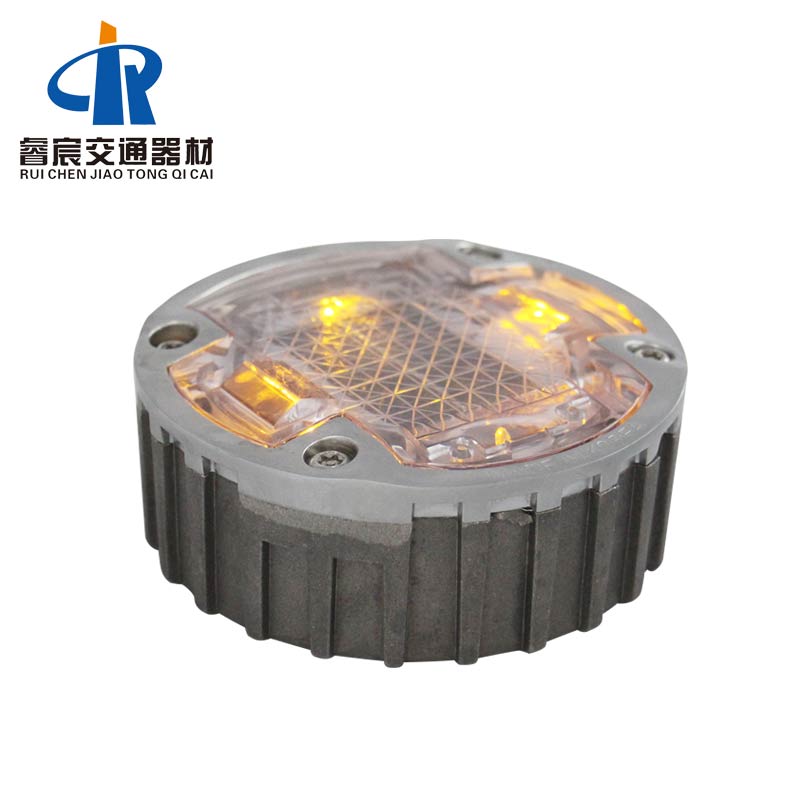

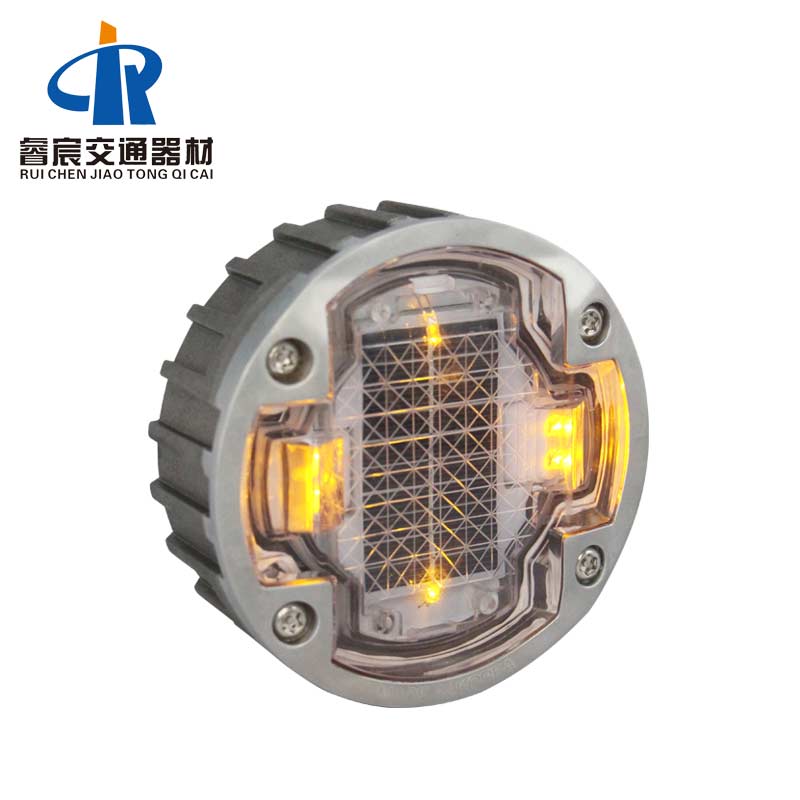

Aluminum Road Stud Reflectors Pavement Marker C3

Load Bearing: >30T(static)
Warranty: 12 Months
Body material: Heavy-duty casting aluminum
Battery: Lithium battery 1000mA
Visual distance: > 800m
Working Mode: Flashing or Constant
Waterproof: IP68

Product Introduction

Aluminum Road Stud Reflectors Features:

•Up to 800 meters of visibility.

•Reliable all night, all-year-round performance.

•Totally sustainable harnessing free solar energy.

•Used where street lighting is either unavailable, Road Stud Reflectors not cost-effective, or environmentally impossible.

•Cost-effective, Road Stud Reflectors are easy to install and require absolutely no wires or maintenance.

•Solar-powered Road Stud Reflectors self-contained surface mounted.

•Road Stud Reflectors for road accept OEM/ODM


Aluminum Road Stud Reflectors Pavement Marker color
Five colors for choice: White, Amber, Red, Blue, Green


Aluminum Road Stud Reflectors Pavement Marker Parameters:


    Material:     Aluminium+ PC
    Power supply:     Solar panel(monocrystalline 2.5V/0.3W)
    Battery:     Lithium battery 1000mA
    Working model:     Blinking or Constant
Charging at daytime and working automatically at night
    Life span:     5 years for lithium battery;
    LED colors:     Yellow, White, Red, Green, Blue
    Resistance:     >30T(static)
    Size:     φ123*45mm  (φ4.84″*1.77″)
    Visual distance:     >800M
    Water poof:     IP68
    Carton Size:     1pcs/box; 30pcs/ctn; Weight: 30kgs; Carton size: 67.5*28*20cm
(1pcs/box; 30pcs/ctn; Weight: 66.14bs; Carton size: 26.57″*11.02″*7.87″)


Aluminum Road Stud Reflectors Pavement Marker
Aluminum Road Stud Reflectors Pavement Marker


Application of Aluminum Road Stud Reflectors C3:

♥Schools and hospitals


♥High traffic areas

♥Walking paths

♥Transit stations

♥Parks and campuses

♥Urban Road


How to install Road Stud Reflectors Pavement Marker C3:


1.Carefully mark the distance between the placement of Road Stud Reflectors. To prevent an adverse effect on the ground, use a proper tool such as Core Drill. Drill 125mm and depth will be 45mm.

2.Remove all debris from the installation hole.

3.Pour epoxy into the holes per the manufacturer’s instruction.

4.Verity that the installation hole is straight. Verify that the installation hole is large enough to allow the epoxy to surround the Road Stud Reflectors shaft.

5.Set the lighting surface of theRoad Stud Reflectors to the desired viewing angle. Verify the epoxy is evenly adhering to the installation hole and Road Stud Reflectors shaft.

After curing the Road Stud Reflectors for 6-8 hours, remove the installation of the isolation facility.
